T304 / T316 Plain Dutch Weave Mesh 20x250 Mesh 100 Micron Filter Cloth
Détails sur le produit:
| Lieu d'origine: | La Chine |
| Nom de marque: | FUHANG |
| Certification: | ISO9001 |
| Numéro de modèle: | maille 20x250 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 mètre carré |
|---|---|
| Prix: | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| Délai de livraison: | 5-8 jours de travail |
| Conditions de paiement: | L/C, T/T |
| Capacité d'approvisionnement: | jours de /15 de 50000 mètres carrés |
|
Détail Infomation |
|||
| Nom de produit: | tissu de 20x250 Mesh Dutch Weave Micronic Filter | Style d'armure: | Armure néerlandaise/simple/sergé |
|---|---|---|---|
| Taper: | Tisser un treillis métallique | Matériel: | Fil d'acier inoxydable, 304 316 |
| Largeur: | Usually1M | Utilisation: | filtre |
| Longueur: | 1-30m | Caractéristique: | etc. Acide-résistant, anti-corrosif, alcali-résistant |
| Avantage: | vente directe d'usine | Échantillon: | libre |
| Surligner: | T304 Plain Dutch Weave Mesh,T316 Plain Dutch Weave Mesh,100 Micron Filter Cloth |
||
Description de produit

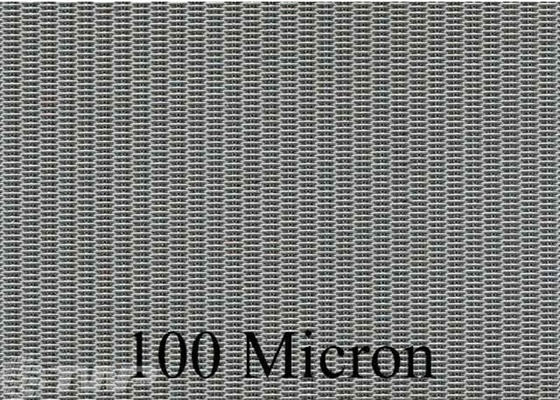

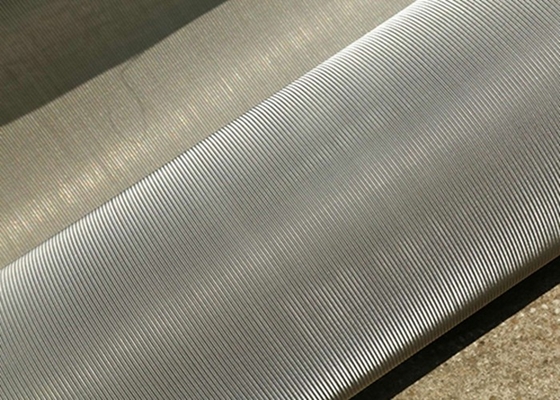

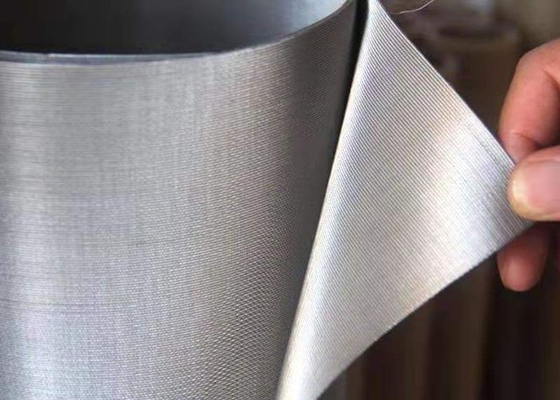

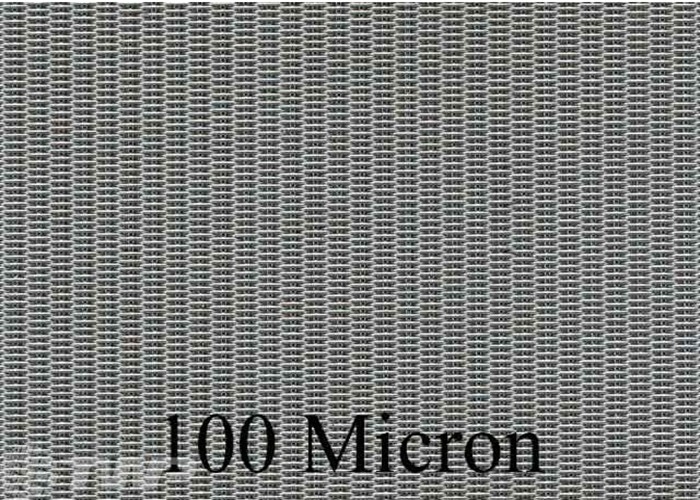

T304/T316 20x250 Mesh Dutch Weave 100 Micron Filter Cloth
Dutch weave woven wire mesh is manufactured from stainless steel wire. Different from plain weave woven wire mesh and twill woven wire mesh, the dutch weave woven wire mesh has different diameter in the weft and warp directions. Commonly the warp wire is coarser wire, which can supply the high tensile strength for the wire mesh. The weft wire is finer wire, which can ensure the excellent filtering performance. This unique structure with greater strength and finer openings is primarily used as a filter cloth.
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 20x250 Mesh uses plain Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 20x250 per in | 20x250 per 2.54 cm |
| WIRE DIAMETER | 0.0098x0.0079 in | 0.24892x0.20066 mm |
| OPENING | 0.0039 in | 0.09906 mm |
| OPENING MICRONS | 100 | 100 |
| POROSITY | 37 | 37 |
| OVERALL THICKNESS | 0.0250 in | 0.6350 mm |
| WEIGHT/SQUARE | FOOT0.5400 | lb0.2452 |
Features
100 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 304/316
